Our Product Range

Engineered for efficiency, built for durability — our gear pumps deliver unmatched performance across steel, oil, coal, grease, and paint industries.

—

Years of Excellence

10,000+

Pumps Sold

1,000+

Happy Clients

Best Seller

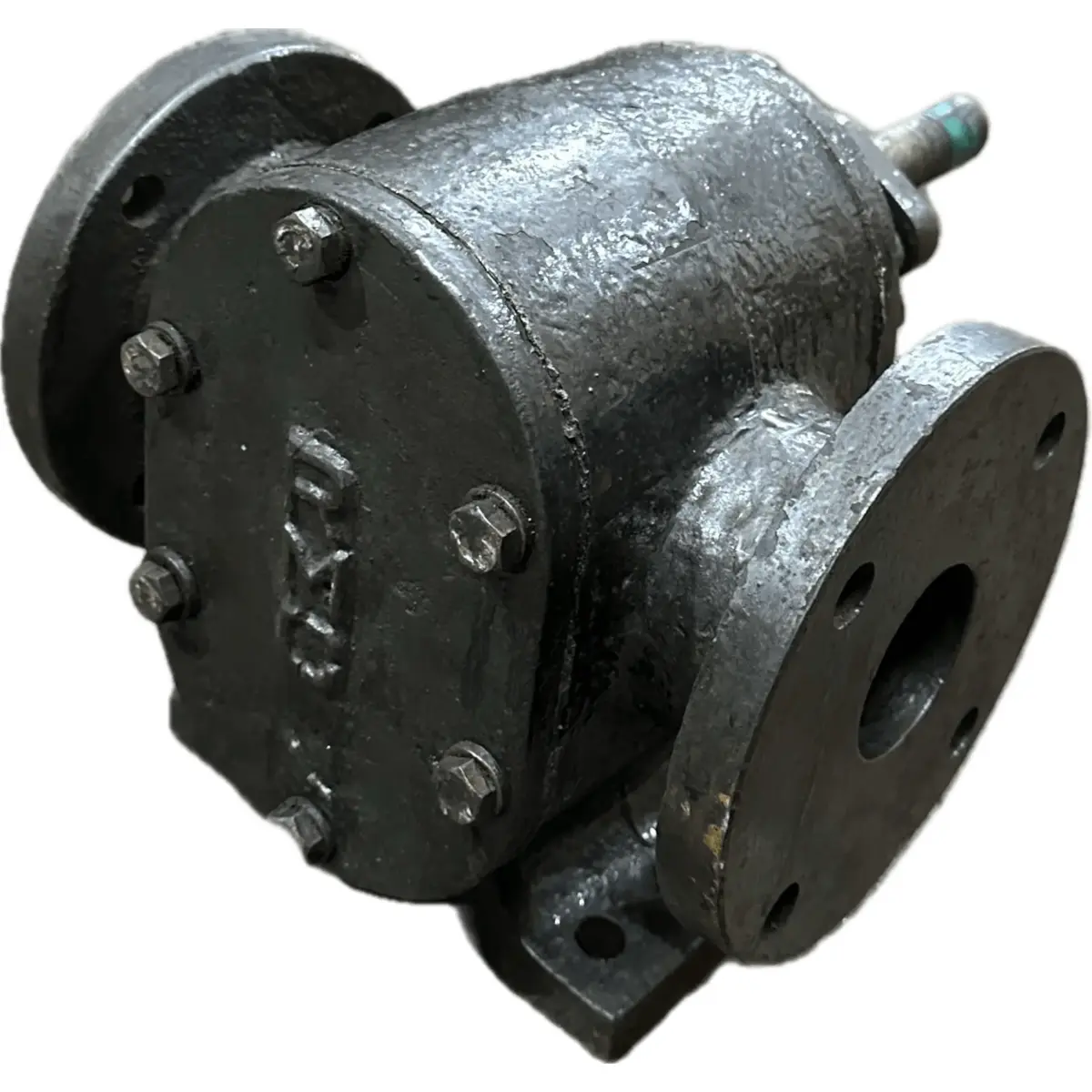

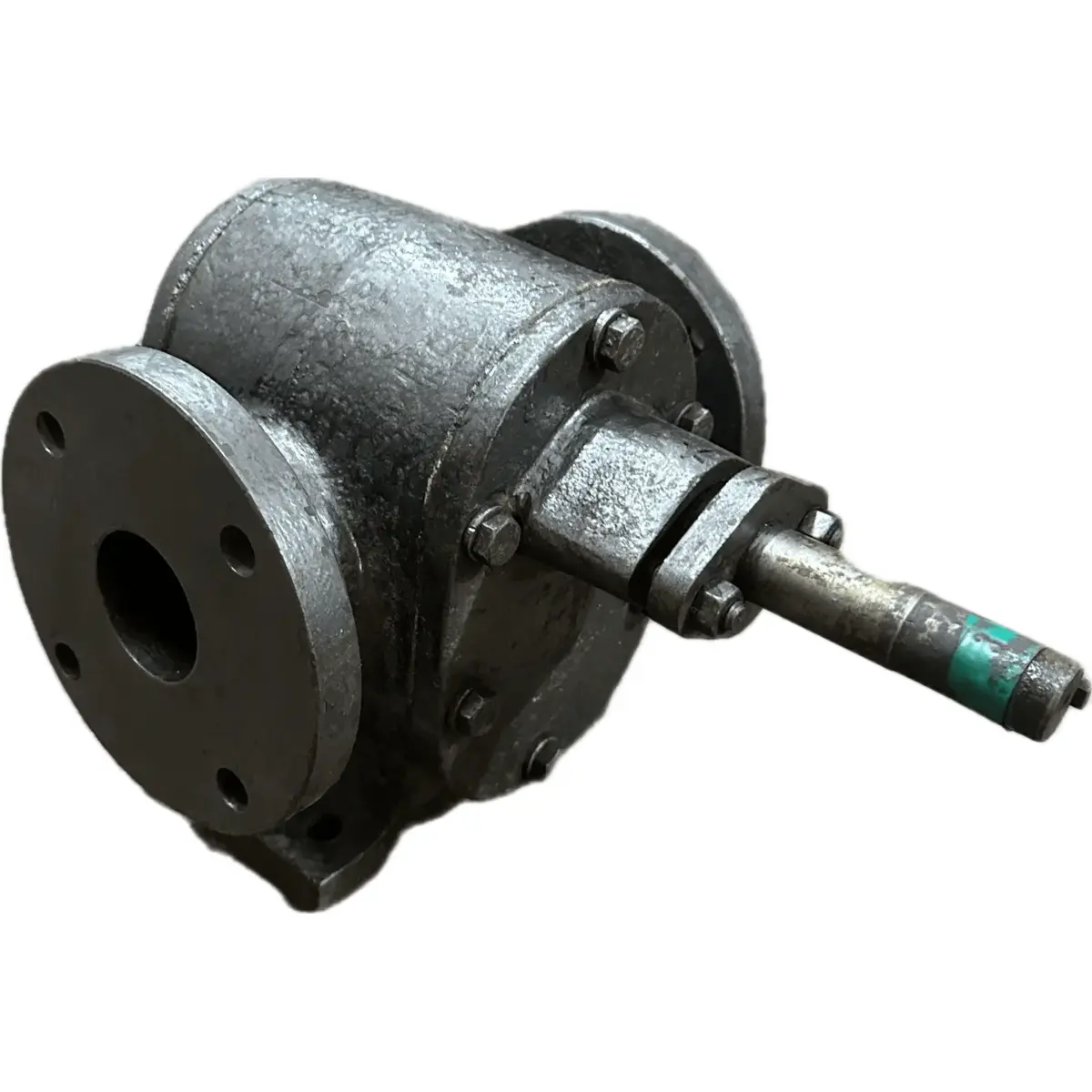

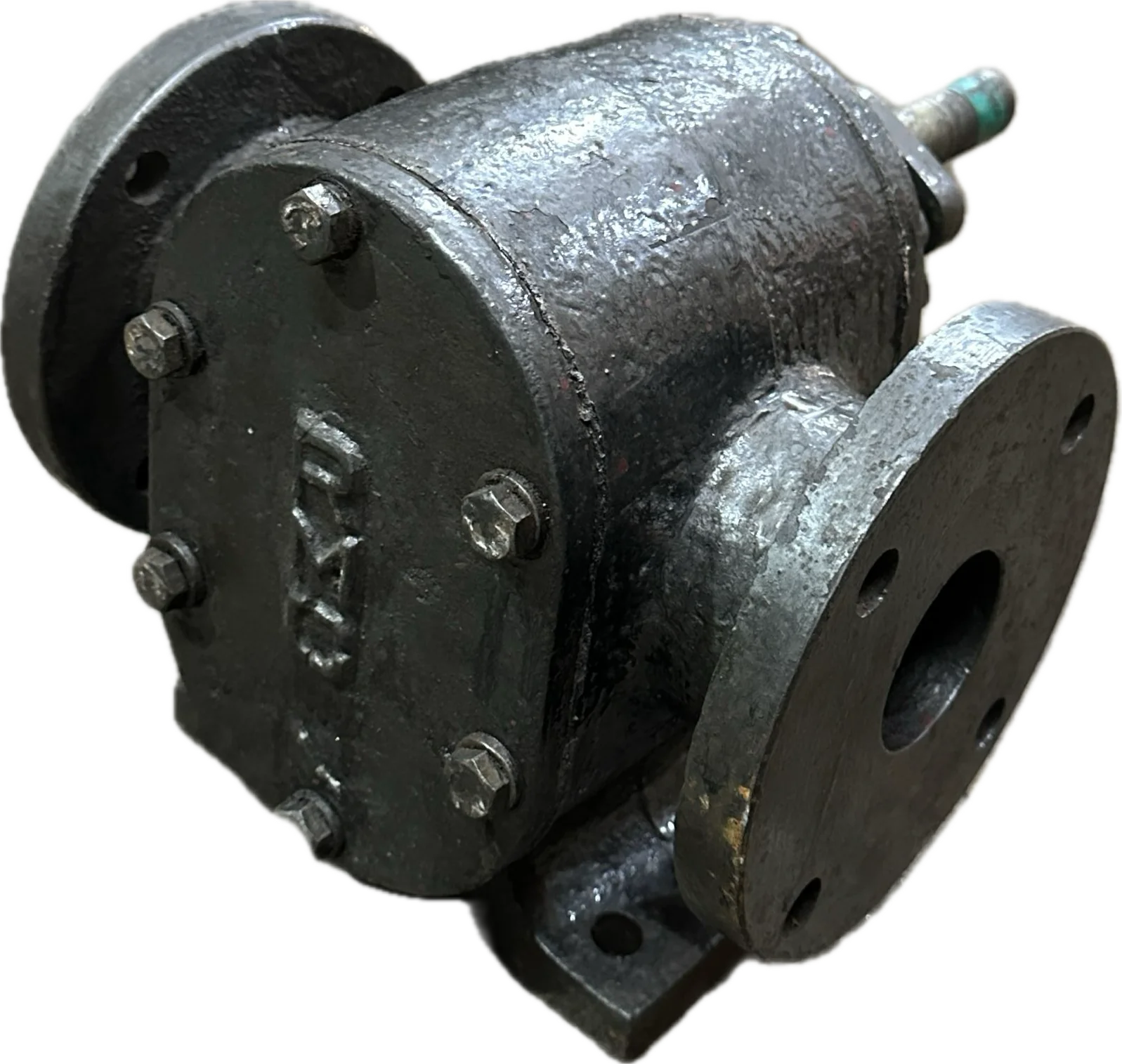

2" × 2" Helical Gear Pump

Helical

Compact precision pump for medium-viscosity fluids. Ideal for fuel oil and lubricant transfer.

80 LPM @ 500 RPM

7 kg/cm²

Head: 50 m

Max 200°C

Motor: 5 HP

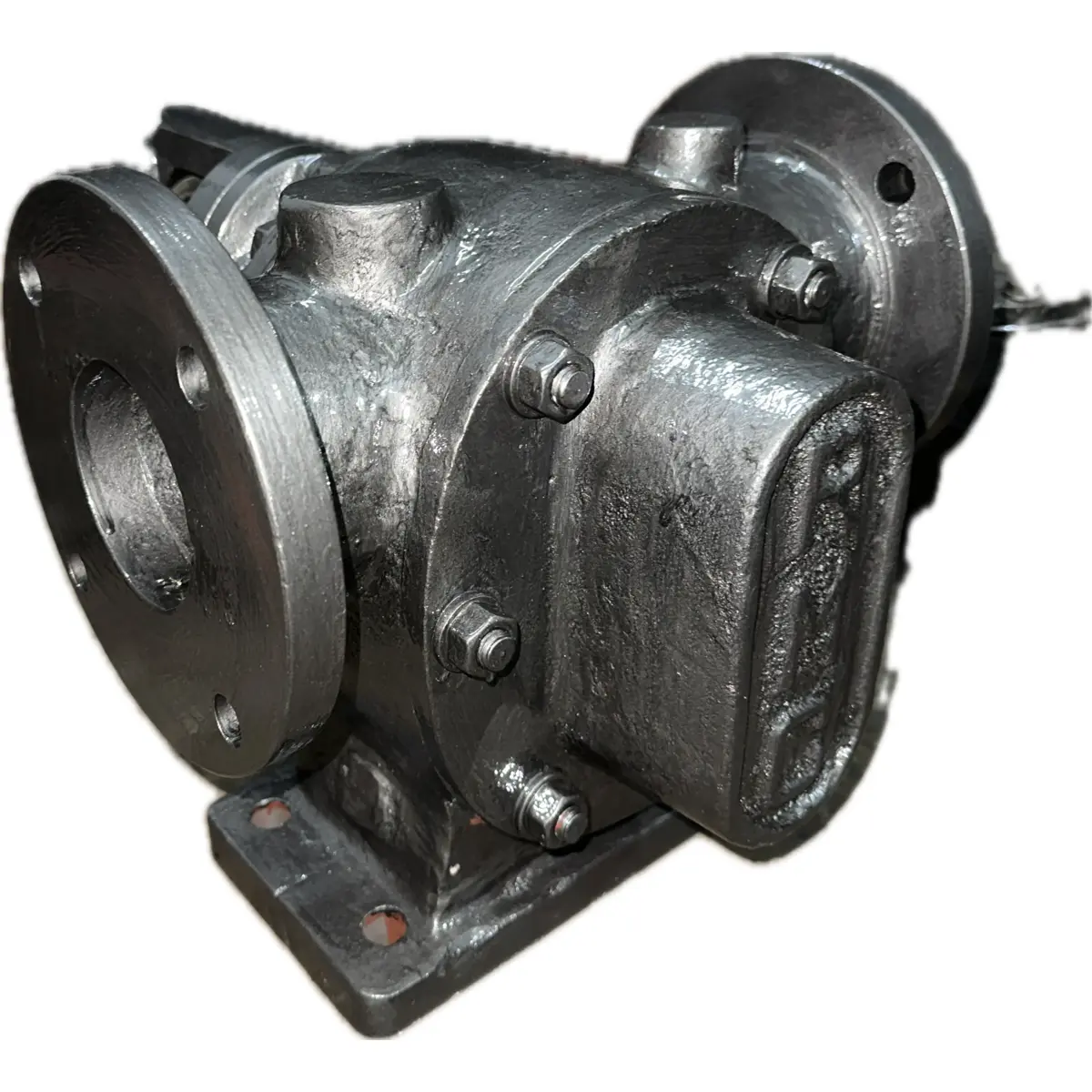

3" × 3" Helical Gear Pump with External Bearing Support

Helical

External bearing support handles heavy radial loads for demanding continuous-duty applications.

250 LPM @ 500 RPM

7 kg/cm²

Head: 50 m

Max 250°C

Motor: 7.5 / 10 HP

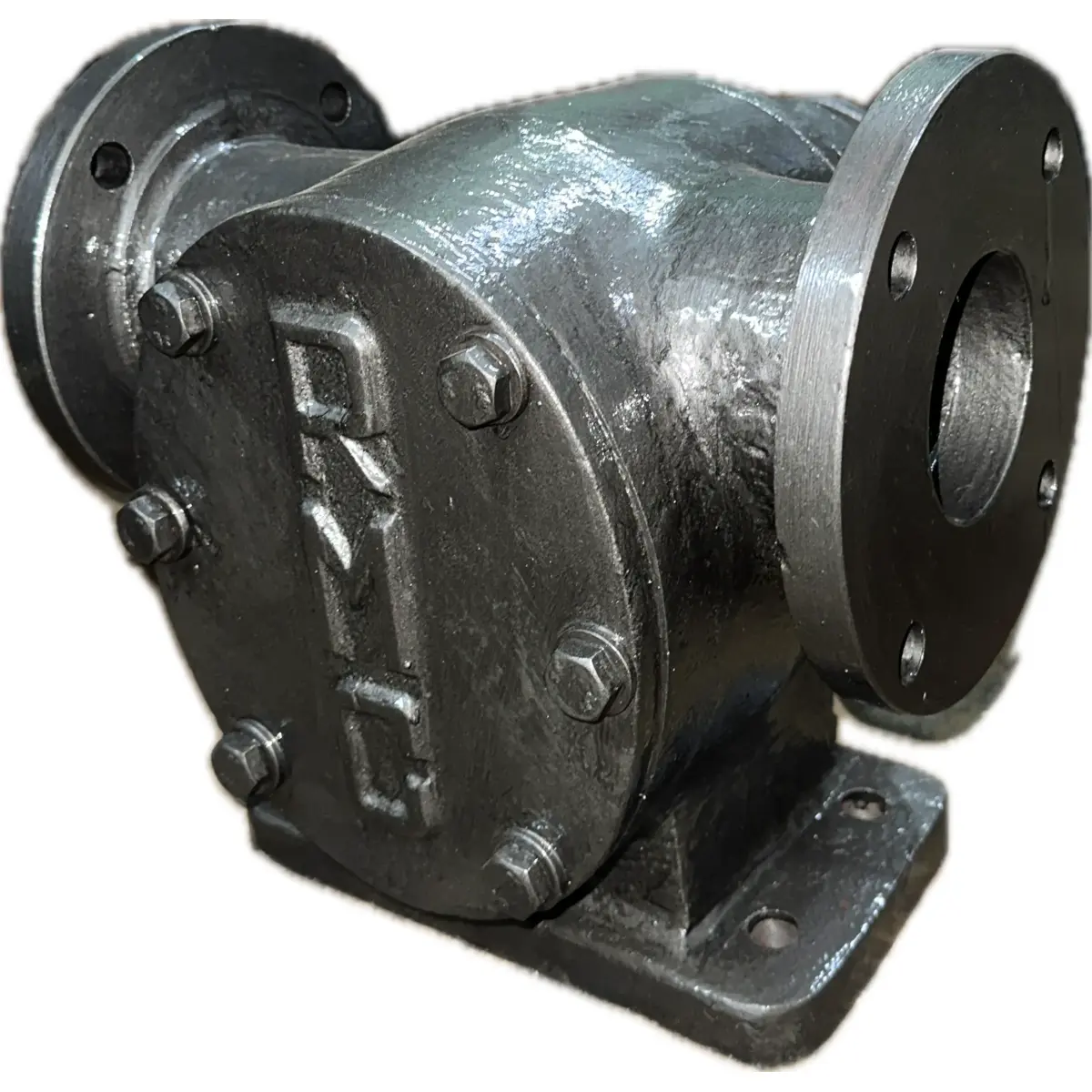

3" × 3" All Bearing Rotary Gear Pump

Rotary

Pulsation-free rotary design with full bearing support for continuous high-pressure service.

250 LPM @ 500 RPM

7 kg/cm²

Head: 50 m

Max 250°C

Motor: 7.5 / 10 HP

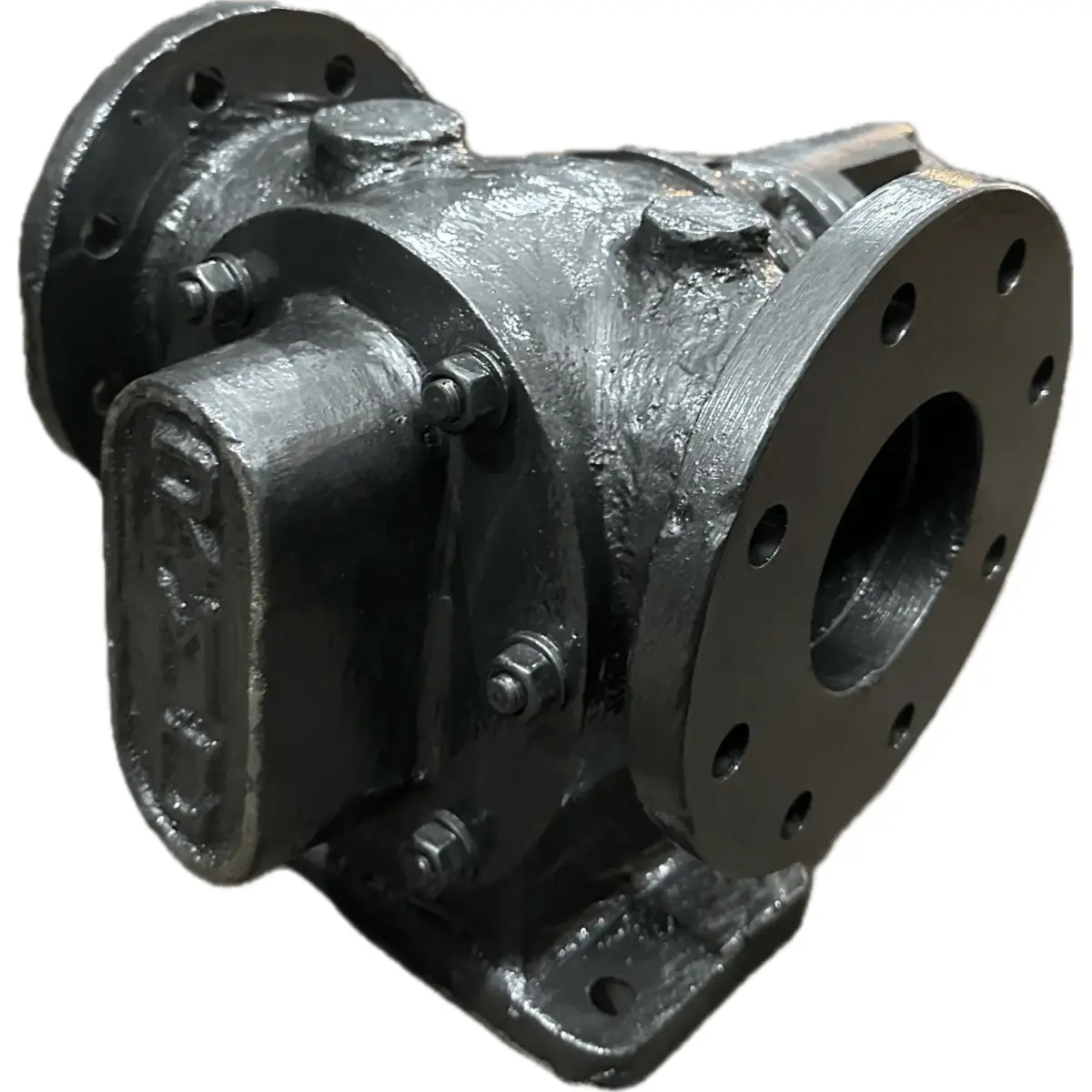

4" × 4" Light Duty Helical Gear Pump with External Bearing Support

Helical

High-capacity helical pump for large-volume transfers in steel mills and oil processing plants.

325 LPM @ 500 RPM

7 kg/cm²

Head: 50 m

Max 250°C

Motor: 10 HP

Heavy Duty

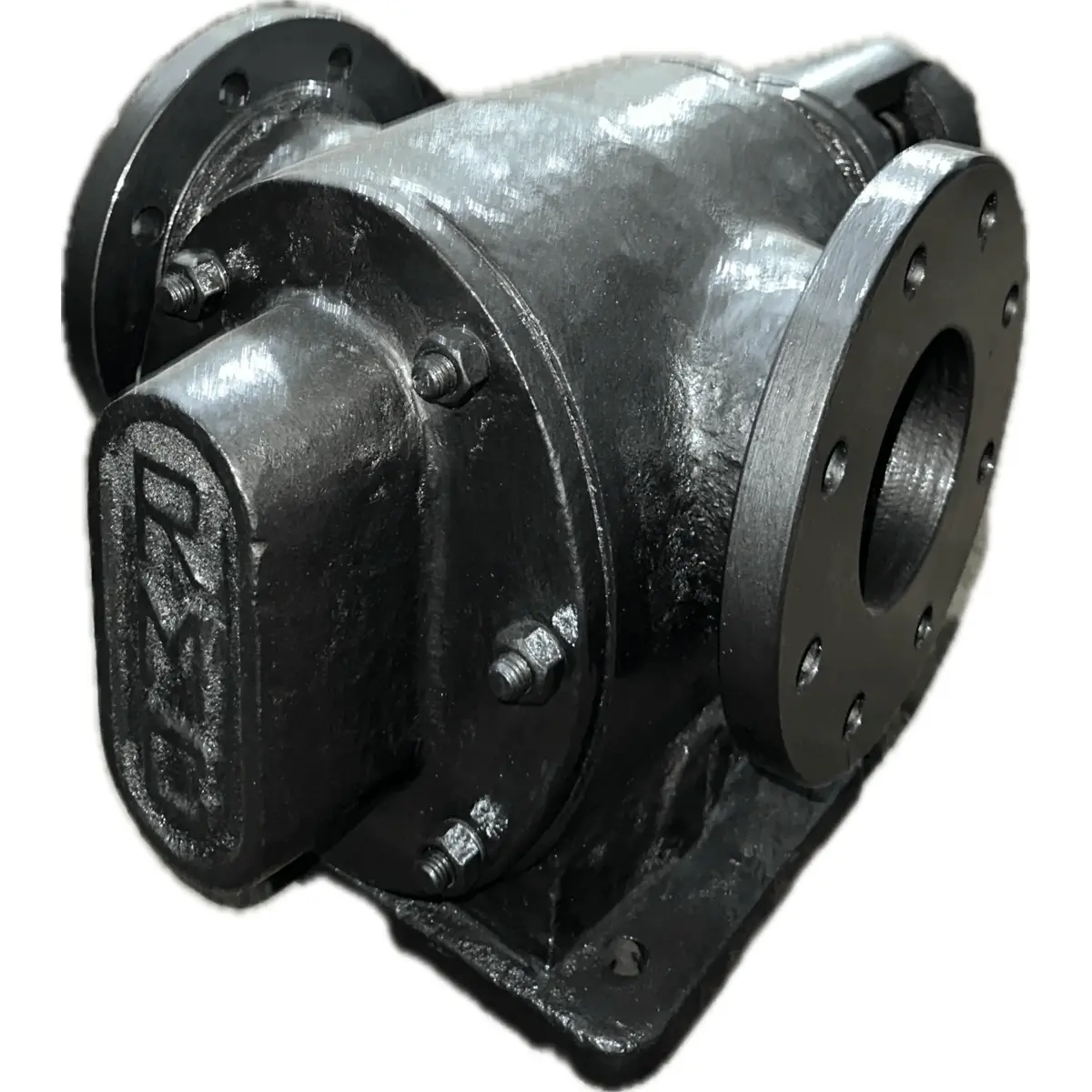

4" × 4" Heavy Duty Helical Gear Pump with External Bearing Support

Helical

Built for 24/7 operation at extreme temperatures up to 325°C — the workhorse of heavy industry.

825 LPM @ 750 RPM

7 kg/cm²

Head: 50 m

Max 325°C

Motor: 15 / 20 HP

4" × 4" Rotary Gear Pump

Rotary

Precision rotary gears deliver consistent pulsation-free flow at high temperatures up to 300°C.

450 LPM @ 500 RPM

7 kg/cm²

Head: 60 m

Max 300°C

Motor: 20 HP

No products match this filter

Try selecting a different category above.

Need a Custom Solution?

Our engineering team can design pumps tailored to your specific requirements and operating conditions. Contact us for drawings and technical specifications.
